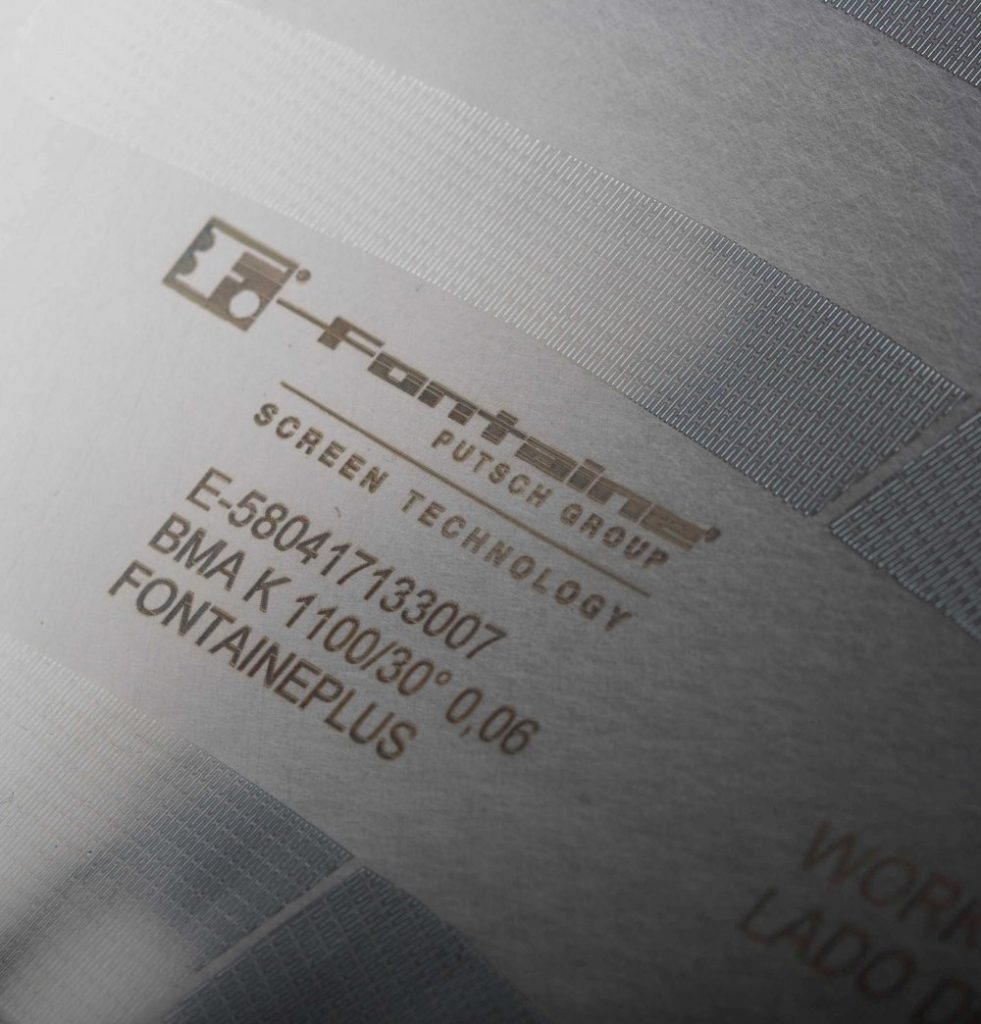

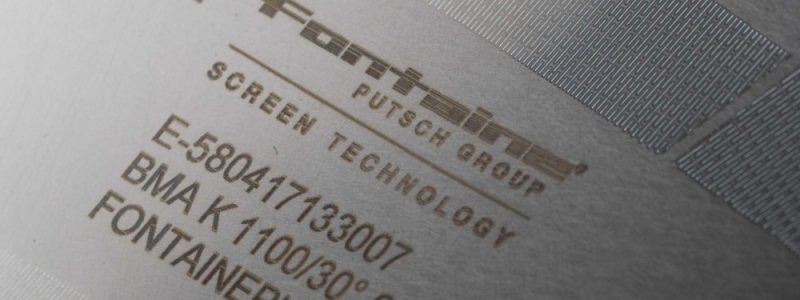

Fontaine® screens for continuous centrifuges are made of 99,9 % pure nickel with a hard chrome plated surface. Due to a hard chrome plated surface we achieve a reduction of screen wear and thus increase working life. The conical execution of the slots leads to high through put and a low degree of clogging. Slot characteristic is optimized to achieve low molasses purities. Our screens for continuous centrifuges can be customized independent from any centrifugal manufacturer, and available in any dimensions. Our screens are available in 2 different versions: Fontaine® STANDARD Fontaine® MAX
Screens for continuous centrifuges
Screens for continuous centrifuges
Contacts
Manuel Martin
Managing Director
Phone: +49-241-91863-10
Fax: +49-241-91863-60
Mobile: +49-176-19186312
Details
| Slot size in mm | Thickness in mm | Open Area in % | |
|---|---|---|---|
| Fontaine Standard | 0,04×1,68 | 0,28-0,30 | 4,2 |
| Fontaine Standard | 0,04×2,30 | 0,28-0,30 | 4,5 |
| Fontaine Standard | 0,04×2,80 | 0,28-0,30 | 7 |
| Fontaine Standard | 0,06×1,68 | 0,28-0,30 | 6,5 |
| Fontaine Standard | 0,06×2,20 | 0,28-0,30 | 7,5 |
| Fontaine Standard | 0,06×2,80 | 0,28×0,30 | 10 |
| Fontaine Standard | 0,09×1,70 | 0,28-0,30 | 9,5 |
| Fontaine Standard | 0,09×2,30 | 0,28-0,30 | 10 |
| Fontaine Standard | 0,09×2,80 | 0,28-0,30 | 13 |
| Fontaine MAX | 0,04×2,30 | 0,33-0,35 | 10 |
| Fontaine MAX | 0,06×2,20 | 0,33-0,35 | 15 |
| Fontaine MAX | 0,09×2,30 | 0,33-0,35 | 22 |
