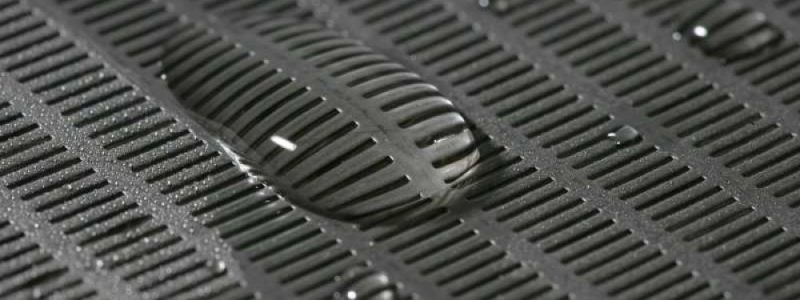

Fontaine® cover screens are used worldwide due to their high quality standard. Sugar mills as well as Refineries and centrifugal manufacture are our customers since decades. The conical execution of our slot and round holes lead to higher through-put and a low degree of clogging.
This high quality perforation leads to a perfect molasses run-off and a high grade of separation and reduced crystal damages. Our screens provide a long working life, a low-wear execution and are customized in accordance to your individual process. Screens can be produced in brass, copper and stainless steel (AISI 430, AISI 304 and AISI 316), a max width of 1300 mm and different execution of slot and round holes.
Cover screens for batch centrifuges
Cover screens for batch centrifuges
Contacts
Manuel Martin
Managing Director
Phone: +49-241-91863-10
Fax: +49-241-91863-60
Mobile: +49-176-19186312
Details
| Hole Width ø 0,5 mm | Hole Width ø 0,6 mm | Hole Width ø 0,8 mm | Hole Width 0,35x4mm | |
|---|---|---|---|---|
| Division in mm | 1,1 | 1,4 | 1,25 | 5,5 |
| open area in% | 20 | 19 | 36 | 25 |
| Maximum material thickness in mm | 0,6 | 0,6 | 0,5 | 0,7 |
Other screen specification on request or alternatively screens can be produced on roll
